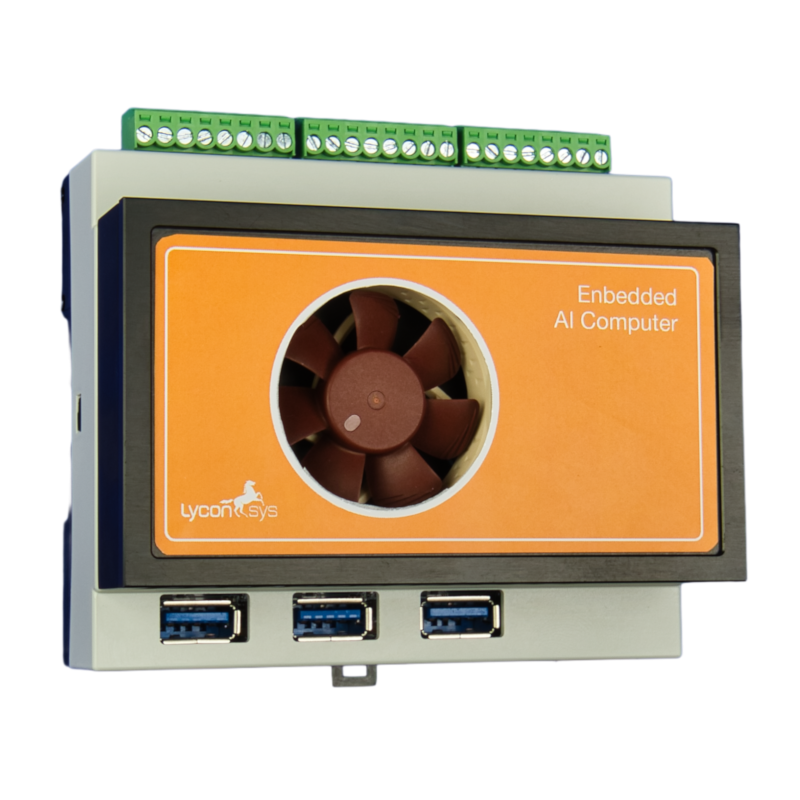

OrinHS – Industrial AI Computer (Edge)
Edge AI in the control cabinet: NVIDIA Jetson Orin as a DIN rail module
- 20–100 TOPS AI compute – four models: Orin Nano 4/8 GB, Orin NX 8/16 GB
- CUDA, TensorRT, DeepStream pre-installed – ready to use from delivery
- DIN rail (6 TE), -30°C to +70°C, IP30, 9–24 V DC
- 8 digital inputs, 2 analog inputs, 1 switching output – industrial I/O built in
- Custom BSP package with drivers, OTA update support and sample code
- Compatible with LyconSys LTE modem and VPN router on the same DIN rail

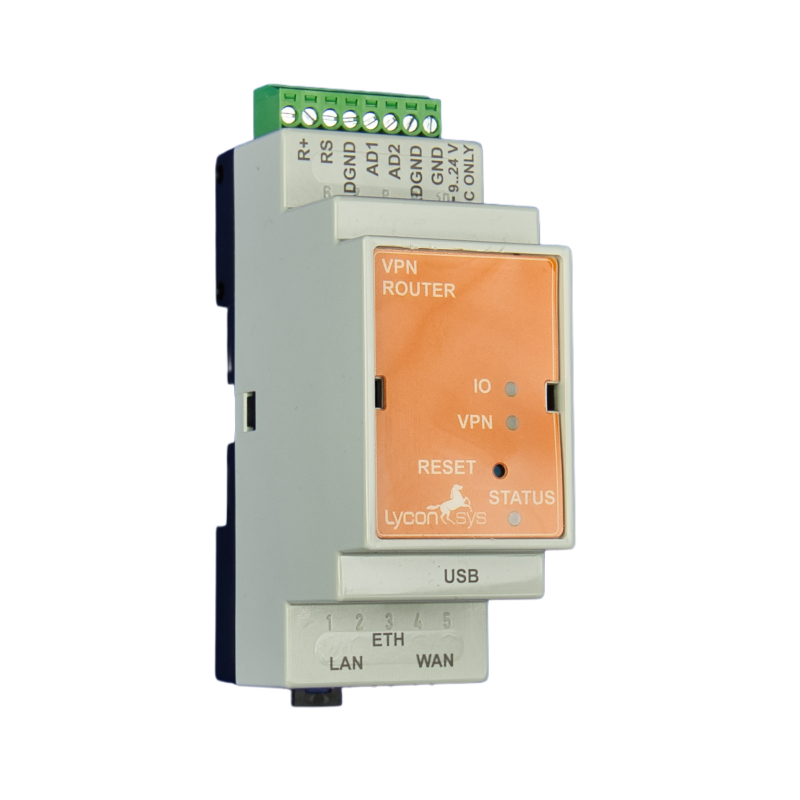

ERT51 – VPN Gateway
IPSec and OpenVPN in a compact DIN rail form factor. In-house firmware, OTA updates, long-term product support.
Details

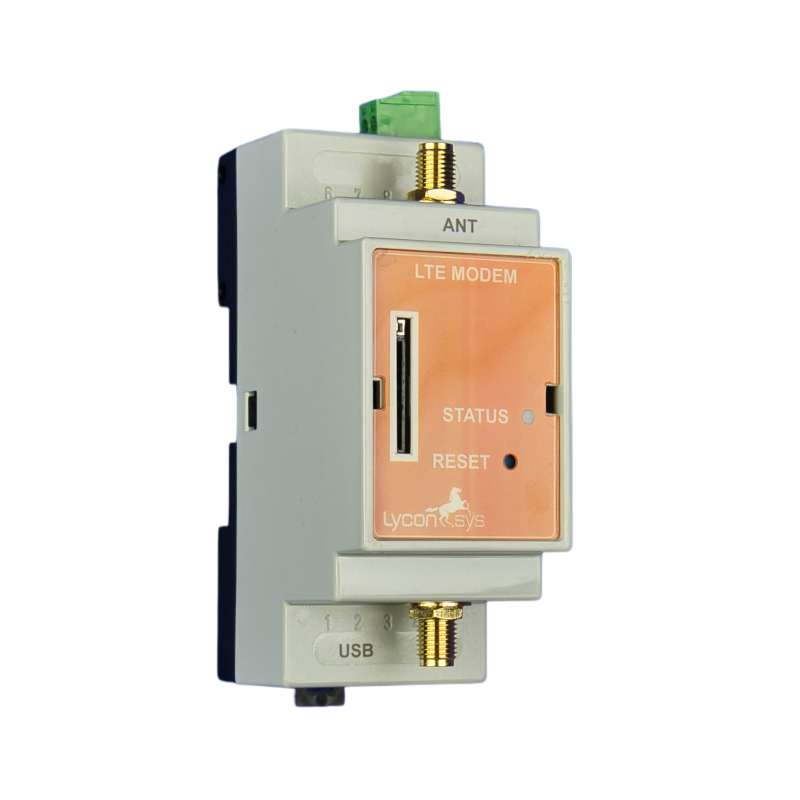

4GxLTE – LTE Modem
LTE connectivity up to 100 Mbit/s as a DIN rail module – directly compatible with ERT51 and OrinHS.
DetailsAll Products
NB-IoT modems, DSL modems, media converters, USB 2.5G adapters and accessories – the complete LyconSys product catalogue.
Product CatalogueApplication Areas
Edge AI & GPU Computing
Up to 100 TOPS on NVIDIA Jetson Orin – no cloud required. CUDA, TensorRT and DeepStream pre-installed. Object detection, classification and decision logic directly at the machine.
Secure Remote Access & Plant Monitoring
IPSec and OpenVPN built in – designed for control cabinet installation and continuous operation at -30°C to +70°C. In-house firmware, no third-party dependency, OTA updates included.
Industrial Communication (LTE / DSL / Fiber)
LTE up to 100 Mbit/s, VDSL and fiber as DIN rail modules – compatible and available long-term. ERT50 VPN router: available without model change from 2013 to 2025.
Autonomous Measurement Systems
Object and weather detection, logging, event recognition – with local data processing and no cloud dependency. Reference: all-sky monitoring with 10 ms inference, 24/7 operation.
Safety-Critical Environments
Projects requiring EN 61000-6-2 compliance, lifecycle guarantees and OTA updates. Firmware and web UI developed in-house – direct response to security issues without third-party tickets.
References
Selected Projects (Excerpt)
- Autonomous all-sky monitoring with Jetson Orin Nano – high-resolution scene detection, 10 ms inference, 24/7 operation without cloud
- Remote maintenance gateway for heating system manufacturer – >5,000 units delivered
- Energy management component for solar-powered street lights – 4,500 units delivered
- PoE power injection module with wide input voltage range and galvanic isolation – 150 units delivered
- IoT alarm devices / alarm reporting systems via NB-IoT and LTE-M
Why LyconSys
Short channels. Direct contact. Clear results.
We are a small, specialised team – three graduate engineers who develop and make technical decisions themselves. That means: contacts without hierarchy filters and solutions that don’t get stuck between departments.
In-house development of hardware, firmware, web UI and AI optimisation (TensorRT) – complemented by our own small-series production and a stable network of suppliers and test laboratories.
Long Availability
ERT50: available without model change from 2013 to 2025. Jetson Orin platform: planned availability until at least 2033.
Long Service Life
ERT100 from 2009 is still in the field today. We design for operating lifetimes of 10+ years, not the next product cycle.
In-House Product Support
Firmware, web UI and AI optimisation are developed and maintained by us. Direct response to bugs, security issues and improvements – no third-party ticket required.
Transparent Communication
Clear feedback on availability, lifecycle and update paths within 24 hours. No surprises, no customer service ticket.
